BaoShuo GMT-20 review and disassembly of the ancient mouse

BaoShuo GMT-20 review and disassembly of the ancient mouse



- Original in Russian language



An ancient antique mouse from an unknown Chinese manufacturer ... Not only is it a ball mouse, it also has an RS232 connection interface - it is also a COM port. And there is no scroll wheel on it - scroll! Current generations cannot even imagine this. For them, this is something terrible, and the inscription MADE IN CHINA ...



We pay tribute to History, in terms of its IT development, and describe this mouse.



BaoShuo GMT-20 ancient ball mouse, description



The mouse case is large by today's standards: 118 mm long, 60 mm wide and 35 mm high. Regarding the weight, it’s usual, except that due to the ball it’s a bit heavier than the current office rodents. On the upper part there are only two governing bodies - LMC and RMB. Then an unknown logo with a strange name - BaoShuo ...



BaoSuo GMT-20 review of the old mouse, with a ball and COM port

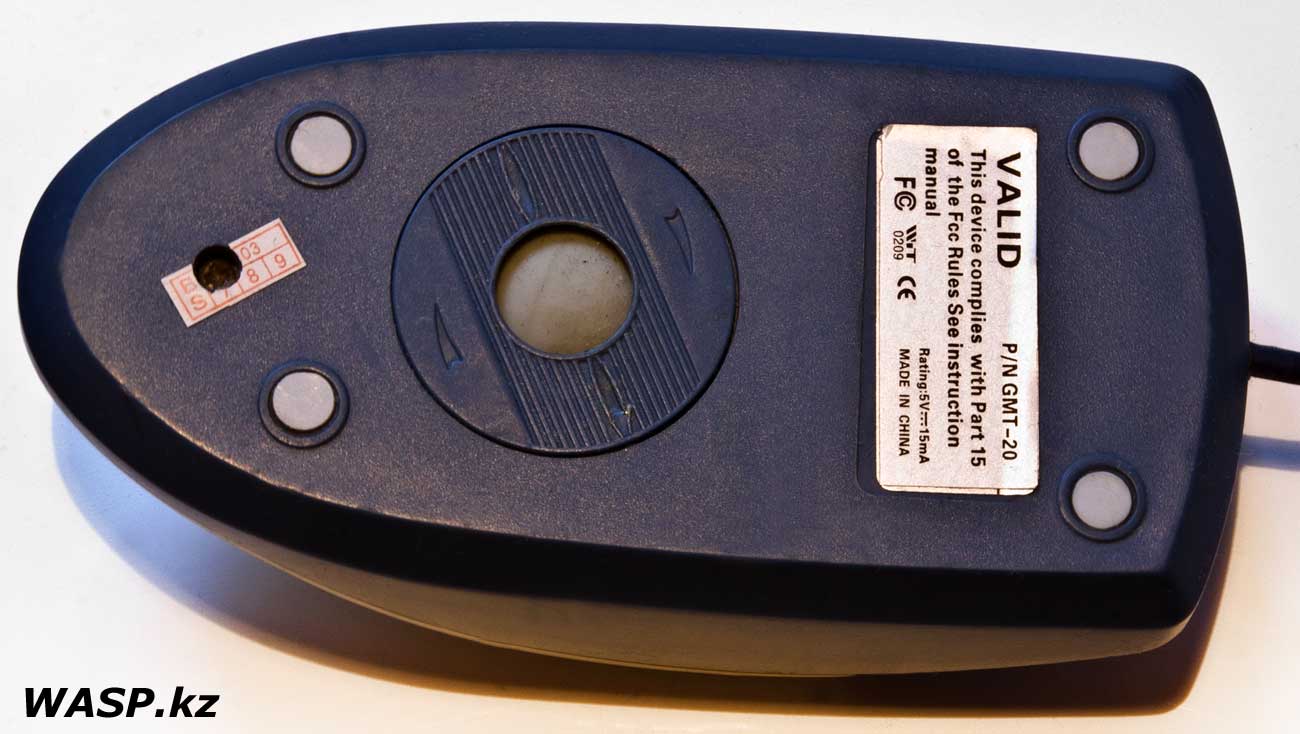

Turn the device over and look. There are four legs glued on the bottom, a warranty sticker - from it we will find out that the mouse was sold in 2002. Almost in the center of the ball, closed as usual with a removable flange. Label.



VALID BaoShuo GMT-20 old mouse with a ball, review



On it in capital letters - VALID (what this means, I do not know). The name of the model, or as here is the part namber - GMT-20. Then some inscriptions, badges, and other nonsense that no one needed. Well, who needs to know the nutritional requirements of the mouse? Made in China.



A4Tech 2D OK-720 review ball mouse COM



However, it is easy to notice that this label is pasted on top of another ... On it are almost all Chinese characters, the logo in the form of a cup ... the name is 2D OK-720, and most importantly - the manufacturer’s website, a very familiar name! a4tech - that's who made this mouse!



BaoShuo GMT-20 how to work with a ball mouse

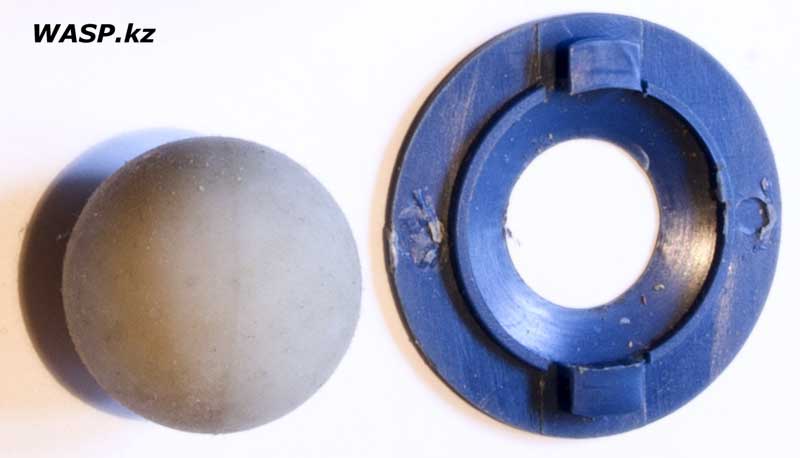

By the way, if you turn the plastic flange, you can remove the ball. This was done for preventive cleaning - the internal elements were quickly contaminated, the mouse did not work well, it was necessary to regularly clean both the ball and the internal elements (with a cotton swab with alcohol). The ball itself is heavy - probably steel, rubber coated on the outside.



BaoShuo GMT-20 mouse with COM or RS-232 connector

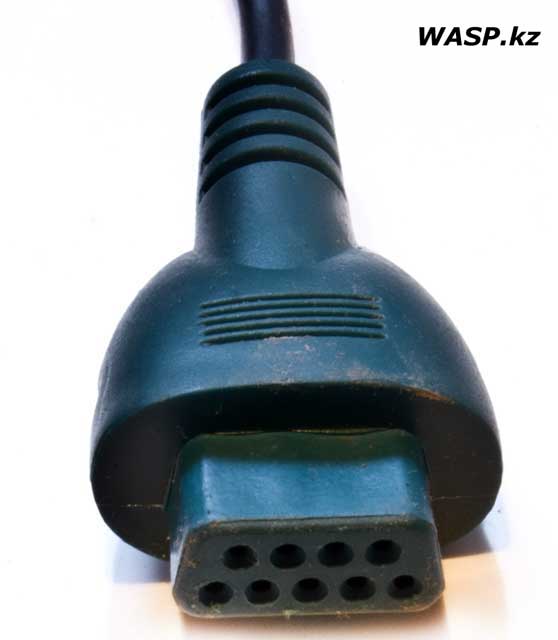

Connection cable, it is made clearly and efficiently. The length is 1 meter 30 cm. At the end, there’s such a thing - an RS232 connector, popularly known as a COM port. And the connector is called - DB9F. Once a pair of such connectors and the odious LPT played the same role as on modern USB computers. Various external devices and peripherals were connected to them ... Even now, there is one COM port on the motherboard, I don’t know why.



Dismantling the BaoShuo GMT-20 mouse



Disassembly is simple - you need to unscrew one screw on the underside, it is usually sealed with a warranty sticker. The upper part is removable.



BaoShuo GMT-20 dismantling an ancient mouse, without scroll



From the inside, the upper part of the case is not interesting - just a plastic cast with an insert for the left and right buttons.



BaoShuo GMT-20 dismantling an old mouse



The bottom is more interesting. Here is the electronics board. Then two guides and a pressure roller with a spring - so that the ball "does not walk" ...



BaoShuo GMT-20 mouse device with a ball

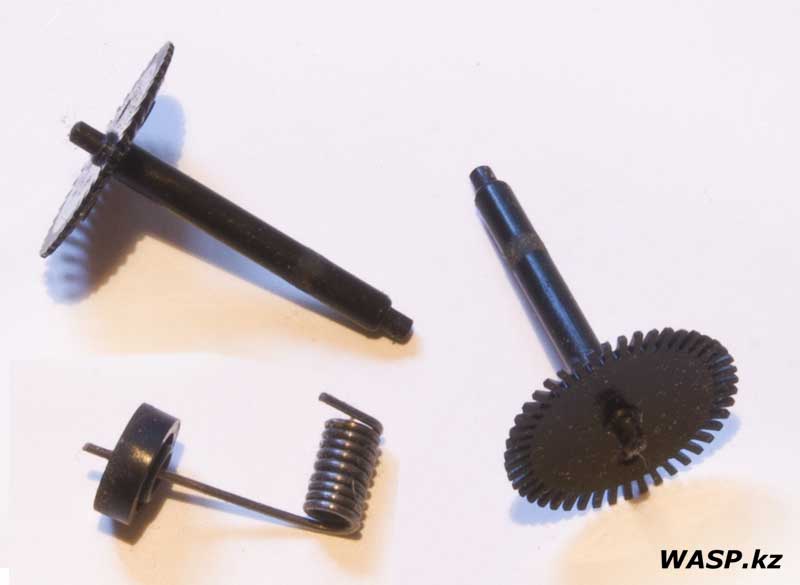

The guides are two plastic axes with which the ball contacts, on the edge of the axis there is a kind of gear - this is the encoder disk, it interacts with the optocoupler. So, this is a mouse with an optical encoder - the slots on the disk are located between the LED and two infrared photodiodes. The ball rotates the guide and the disk. Either a slot or a tooth constantly passes through the optocoupler, this blinking forms a signal from the optocoupler.



Mouse electronics board



TP8370FP old mouse BaoShuo GMT-20 SUNG WEI NW23RS



We take out the entire electronic filling - this is one board of a one-sided PCB. The main element is the TP8370FP chip with the TOPRO logo. I did not find documentation for it, it is most likely a chip that converts and amplifies signals, making them understandable for PCs. Interestingly, these mice have long been gone, and China still sells these microcircuits, at 10 cents apiece ... Next to the microcircuit is a quartz resonator and two regular micro buttons - mouse controls. And here are two Ottopairs, each an LED, and a little black, dual photodiode. On the board marking: SUNG WEI NW23RS 1999-11-12. We see that many radio components are missing here - the one who made the mouse was extremely economical ...



BaoShuo GMT-20 diagram of an old mouse with a ball and COM interface

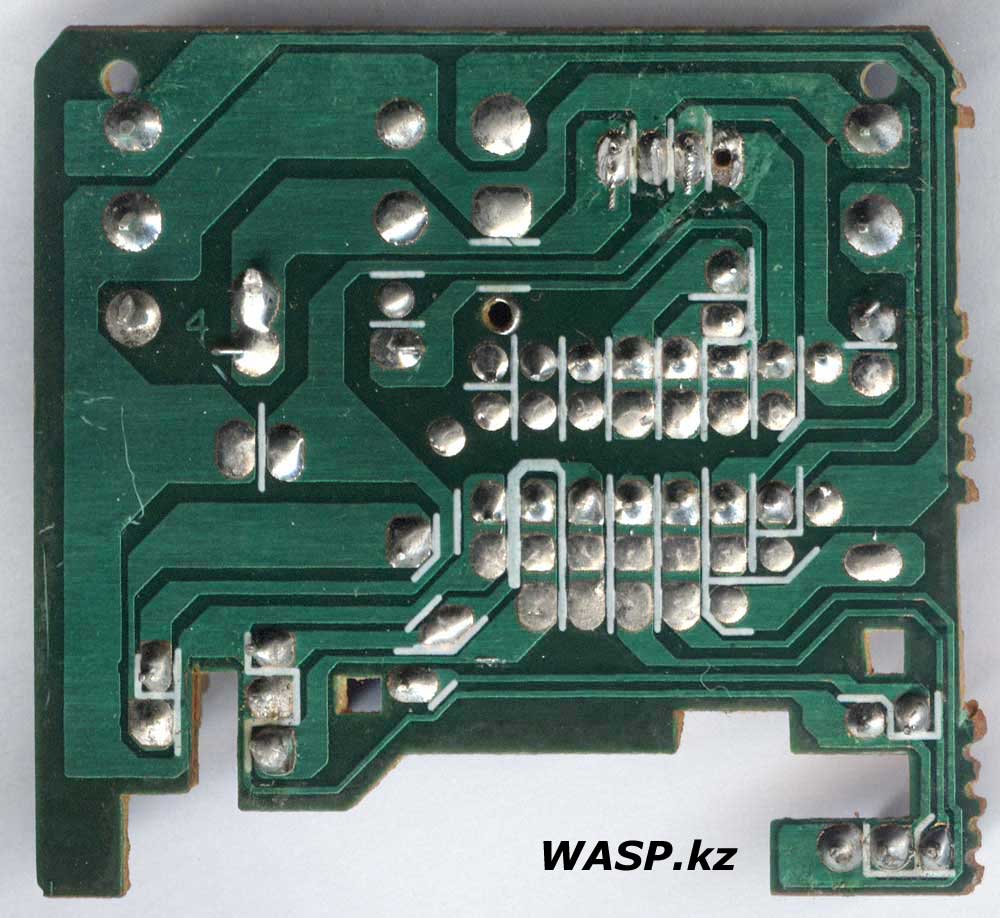

On the reverse side, there is nothing. Tracks ... here I have already removed the wires. But who cares, I explain: the upper right corner, four wires, from left to right - blue, green, red, white.



I could not check this mouse at work; there is no COM port on my computer. However, the exact same mouse, with the name BaoShuo, I had in 2001. Then ball mice were the norm, but there were already mice with the PS / 2 interface - rarely, there were USB ports, but then no one thought of connecting a mouse or keyboard to them ...



The review and disassembly of the BaoShuo GMT-20 is now over. A4Tech also produced OEM products for all unknown brands and brands. There is no nostalgia.





Mikhail Dmitrienko, specially for WASP.kz

2020
