Реле серии THD series

	Main Features:
	UL & CUR safety approval. Subminiature single pole Relay. Standard (450mw) & High sensitive (201mw) type. Plastic sealed type is prepared for washing procedure.

COIL RATING (at 20^oC)

D	NOMINAL VOLTAGE (VDC)	COIL RESISTANCE (Ω) (+/- 10%)	POWER CONSUMPT -ION (W)	NOMINAL CURRENT (mA) (+/- 10%)	PULL IN VOLTAGE (VDC)	DROP OUT VOLTAGE (VDC)	MAX. ALLOWABLE VOLTAGE (VDC)
	3V	20 Ω	0.45W	150.0 mA	70% MAX.	10 % MIN.	130 %
	5V	56 Ω		89.3 mA
	6V	80 Ω		75.0 mA
	9V	180 Ω		50.0 mA
	12V	320 Ω		37.5 mA
	24V	1280 Ω		18.8 mA

L	NOMINAL VOLTAGE (VDC)	COIL RESISTANCE (Ω) (+/- 10%)	POWER CONSUMPT -ION (W)	NOMINAL CURRENT (mA) (+/- 10%)	PULL IN VOLTAGE (VDC)	DROP OUT VOLTAGE (VDC)	MAX. ALLOWABLE VOLTAGE (VDC)
	3V	45 Ω	0.2W	66.7 mA	70% MAX.	10 % MIN.	130 %
	5V	120 Ω		41.7 mA
	6V	180 Ω		33.3 mA
	9V	400 Ω		22.5 mA
	12V	700  Ω		17.0 mA
	24V	2800 Ω		8.6 mA



PERFOMANCE (at initial value)

	3A
Contact Resistance	50mΩ Max. (initial value)
Operate Time	5msec Max.
Release Time	5msec Max.
Dielectric Strength between coil & contact between contact	AC 1500V (1min) AC 1000V (1min)
Insrlation Resistance	100MΩ Min.(DC 500V)
Operating Ambient Temperature	-30oC ~ +75oC
Humidity	35 to 85% RH
Vibration Resistance	10G (10~55Hz)(Dual amplitude: 1.5mm)
Shock Resistance	10G
Life Expectancy Mechanically Electrically	10,000,000 ops. Min. (1800 ops./h)   100,000 ops. Min. (1200 ops./h)
Weight	3.5g (about)



CONTACT RATING

	3A
Rated Carrying Current	DC 24V 3A DC 30V 1A AC 120V 2A
Max. Allowable Current	3A
Max. Allowable Voltage	AC 120V DC 60V
Max. Current (continual)	3A
Min. Load	DC 1V 1mA
Contact Material	Ag alloy

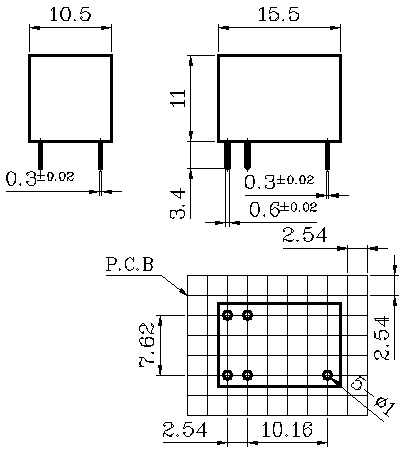

DIMENSIONS (Unit: mm)

WIRING DIAGRAMS (Bottom View)

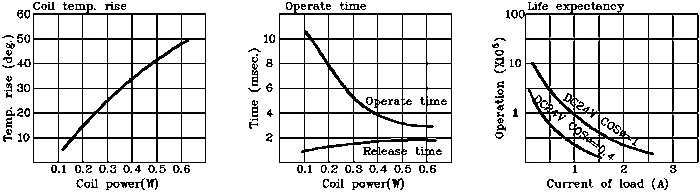

REFERENCE DATA



---
